Zen Palermo

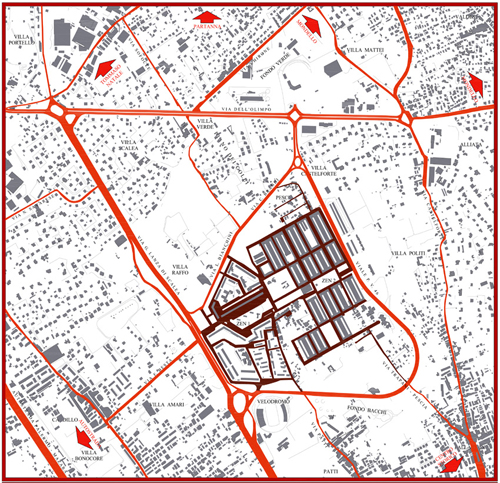

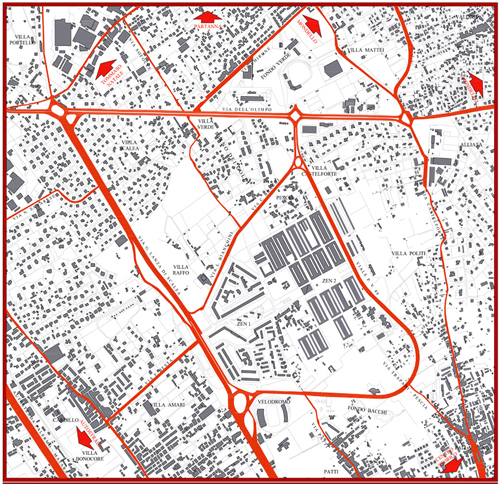

IMPERMEABLE DISTRICT

Zen Palermo

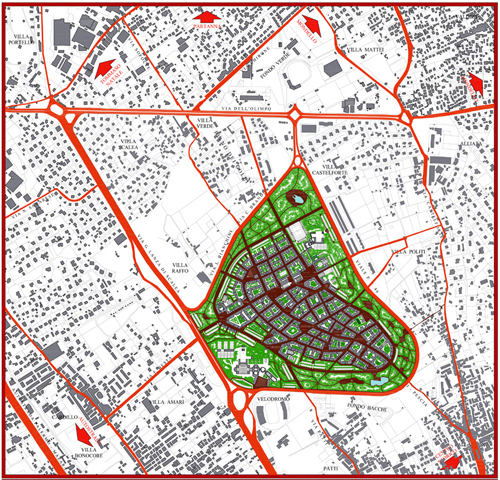

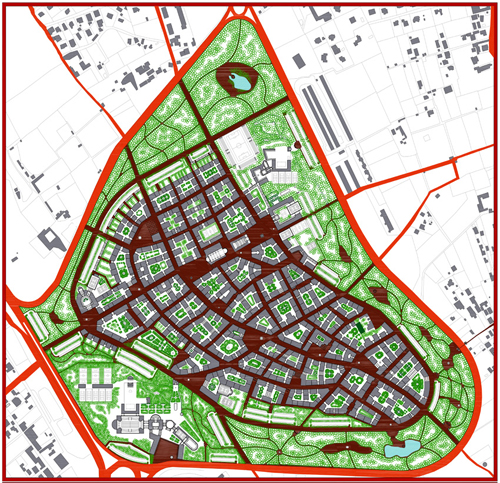

PERMEABLE DISTRICT

(Connections with the surrounding neighborhoods)

Zen Palermo

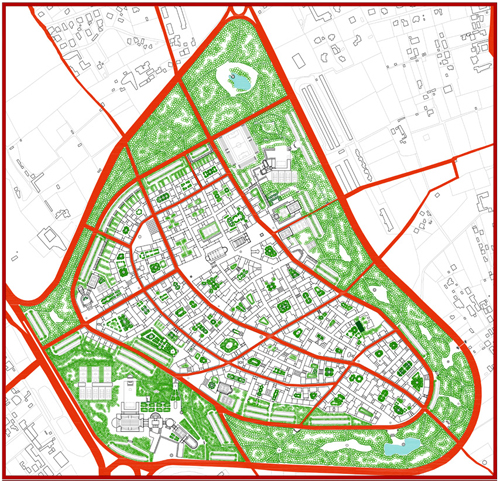

PROPOSED VEHICULAR CIRCULATION

Zen Palermo

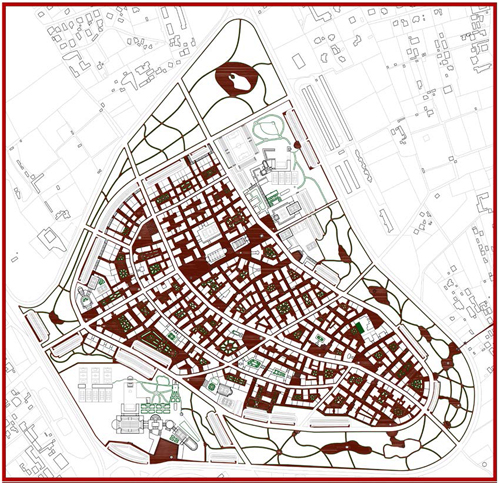

PEDESTRIAN COURTYARDS

Zen Palermo

PERMEABLE DISTRICT

Zen Palermo

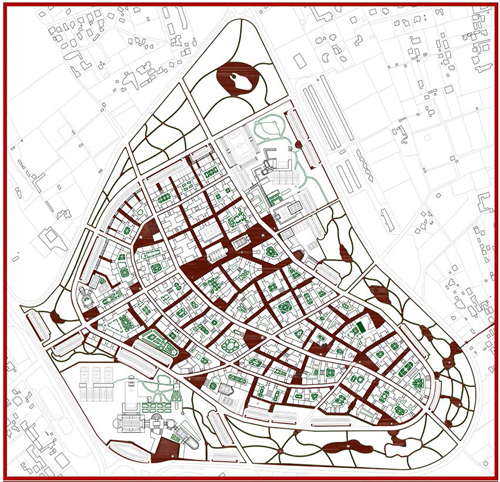

PROPOSED PEDESTRIAN CIRCULATION

(Public spaces for gathering people)

Zen Palermo

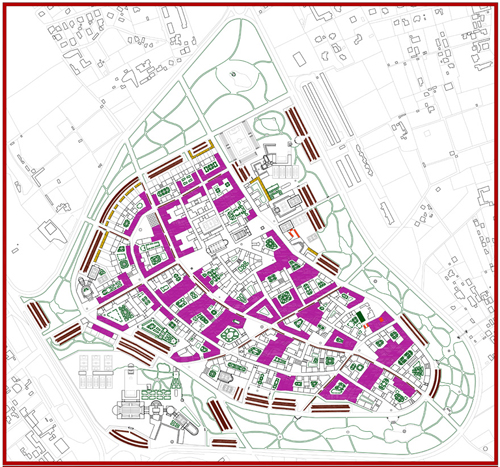

PARKING LOTS

(private and public, outdoor and underground)

Zen Palermo

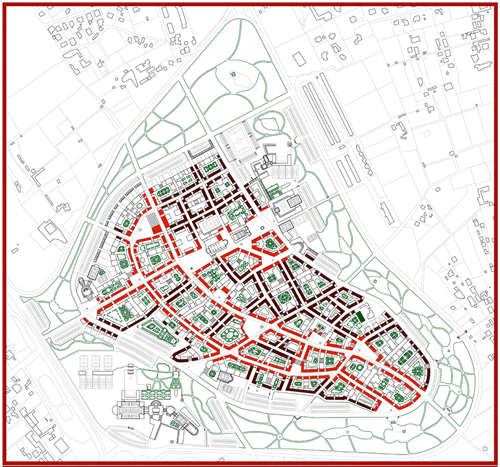

SHOPS AND WORKSHOPS

Zen Palermo

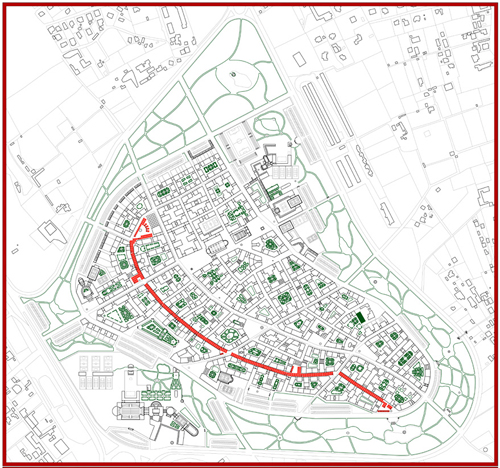

STREET MARKET

Zen Palermo

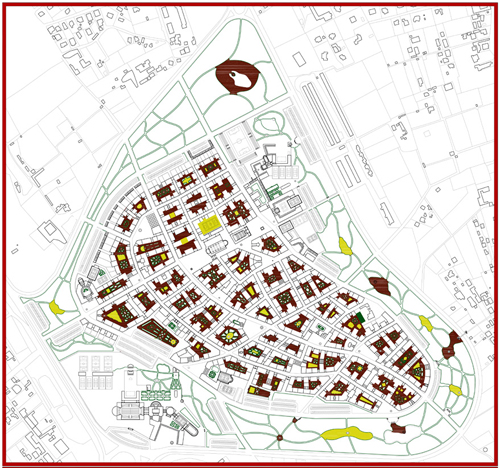

THE CITY OF THE CHILDREN AND ELDERS

Zen Palermo

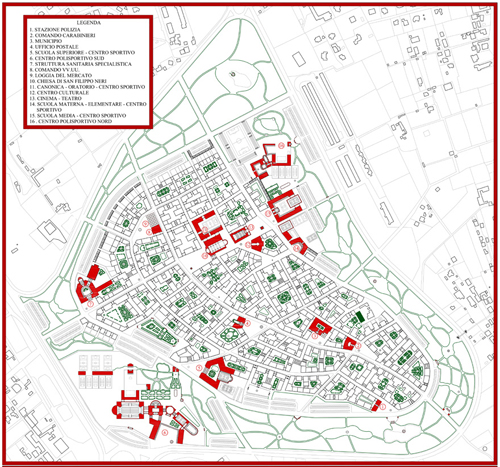

RES PUBLICA

(Public and Special Buildings)

Zen Palermo

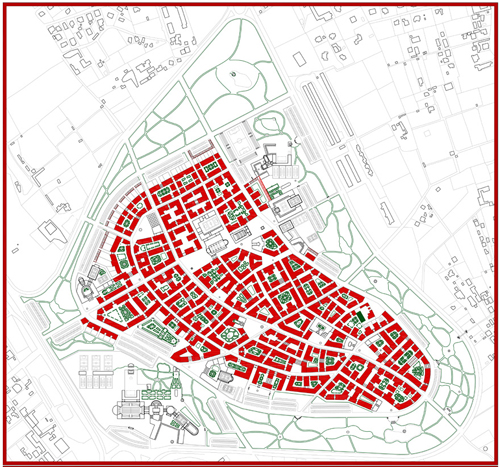

RES PRIVATA

(Mixed use Residential Buildings)

Zen Palermo

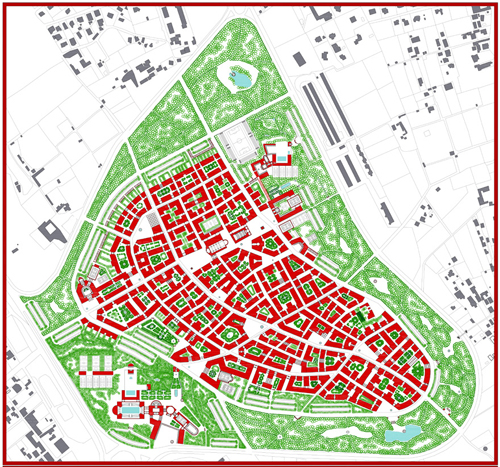

CIVITAS

(Res Publica + Res Privata)

Zen Palermo

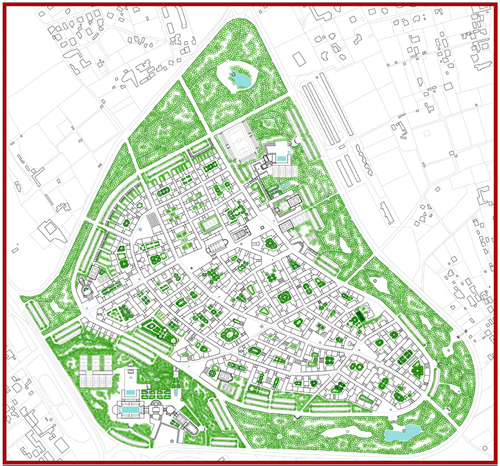

GREEN SPACES

Zen Palermo

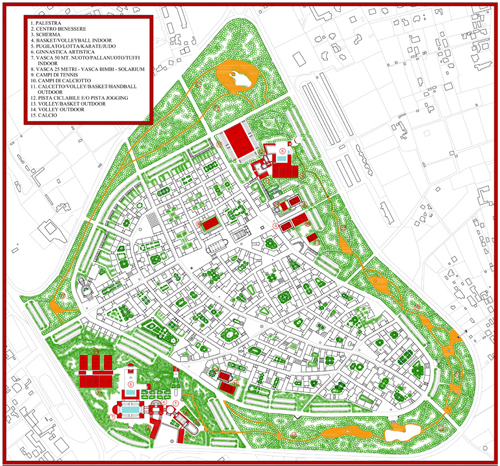

SPORT AREAS

Zen Palermo

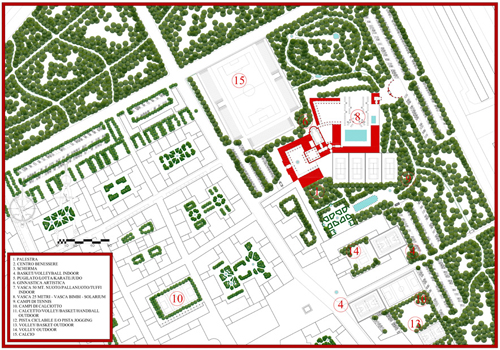

NORTHERN SPORT CENTER

Zen Palermo

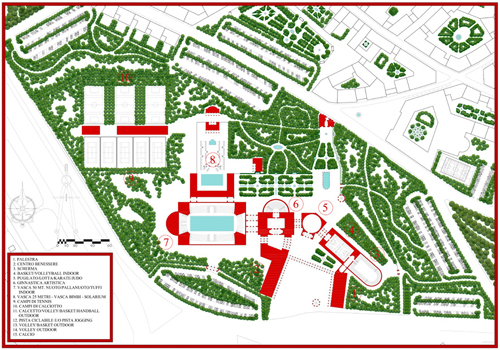

SOUTHERN SPORT CENTER

Zen Palermo

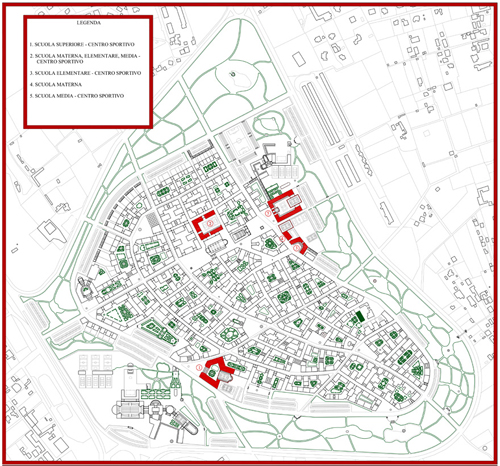

THE SCHOOLS

Zen Palermo

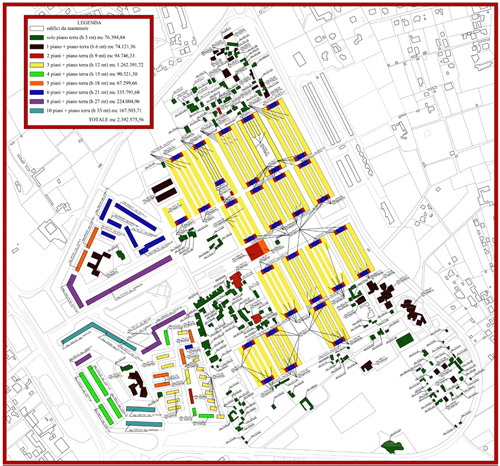

EXISTING VOLUMES (in cubic meters)

Zen Palermo

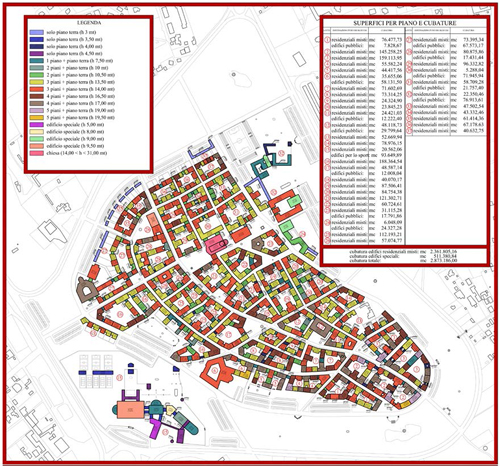

PROPOSED VOLUMES (in cubic metres)

Zen Palermo

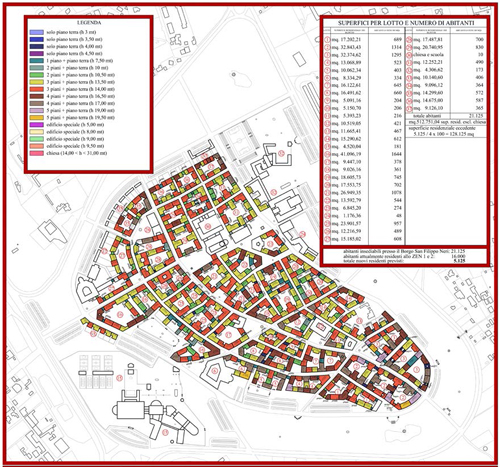

PROPOSED RESIDENTIAL AREAS AND NUMBER OF INHABITANTS

Zen Palermo

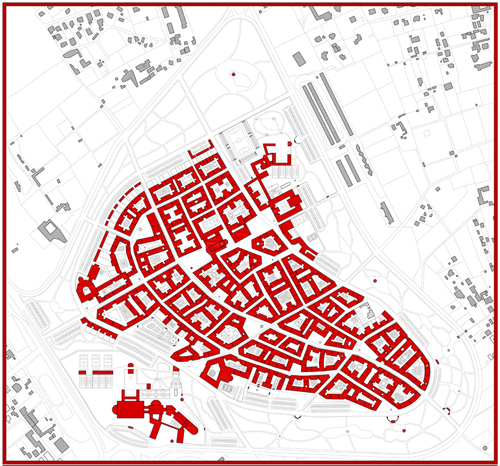

URBAN BLOCKS

Zen Palermo

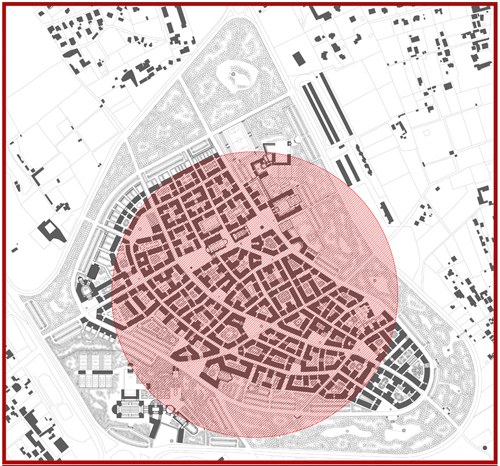

TEN MINUTES WALK

Zen Palermo

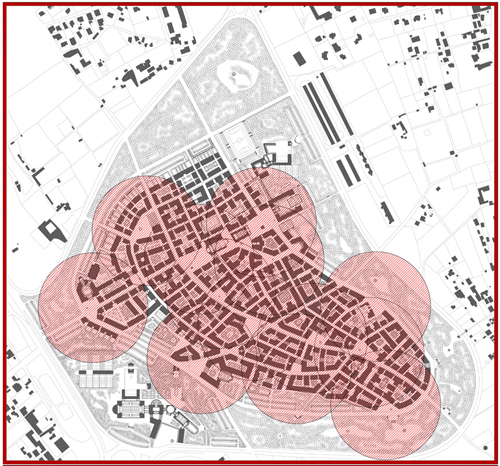

DISTANCES IN MINUTES OF THE PIAZZAS (160 meters; 2 minutes)

Zen Palermo

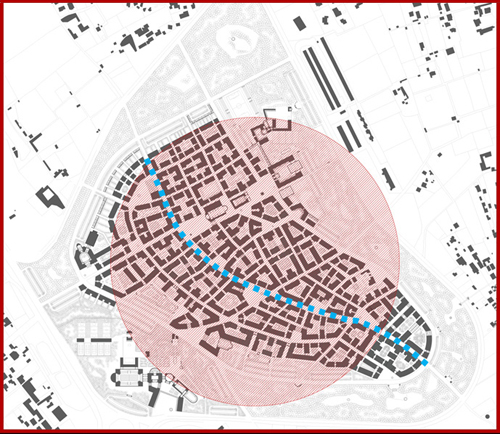

CARDO MAXIMUS (1107 meters; 13,28 minutes)

Zen Palermo

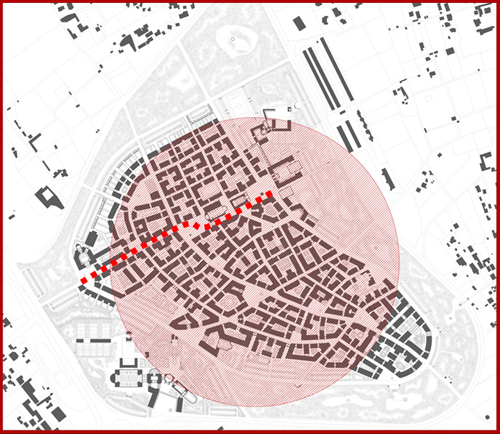

DECUMANUS MAXIMUS (623 meters; 7,47 minutes)

Zen Palermo

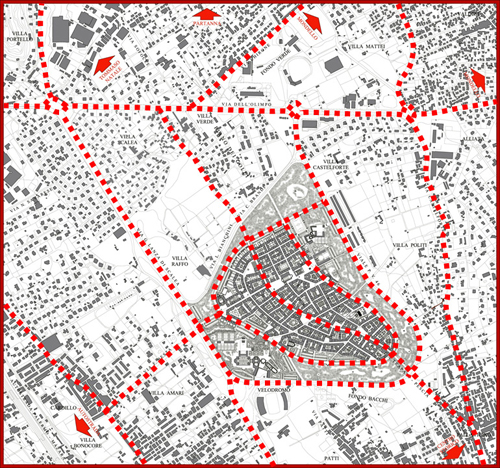

PROPOSED PUBLIC TRANSPORTATION

Zen Palermo

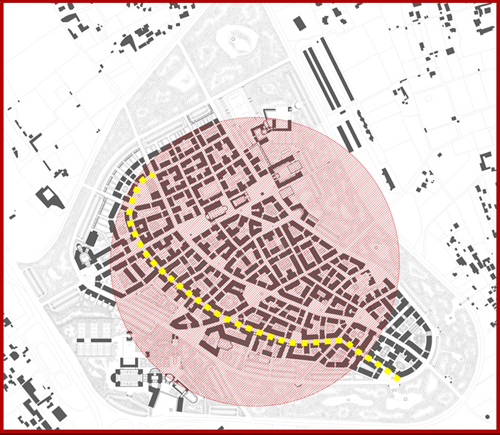

CARDO OF THE STREET MARKET (1099 meters; 13,19 minutes)

Zen Palermo

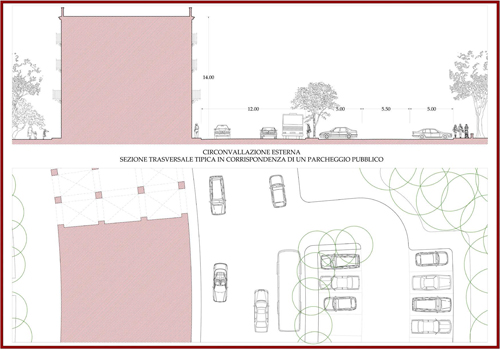

STUDY FOR THE STREET SECTION OF THE RINGROAD

Zen Palermo

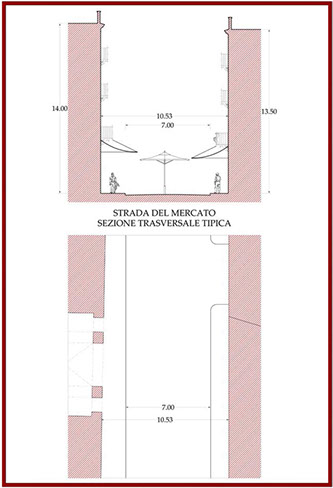

STUDY FOR THE STREET SECTION OF THE MARKET STREET

Zen Palermo

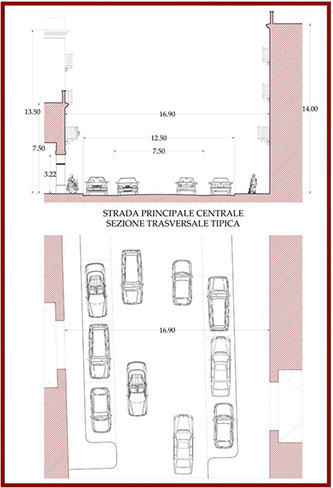

STUDY FOR THE STREET SECTION OF THE MAIN STREET

Zen Palermo

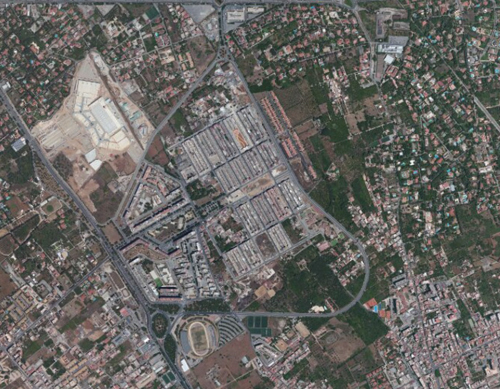

vista aerea della zona

Zen Palermo

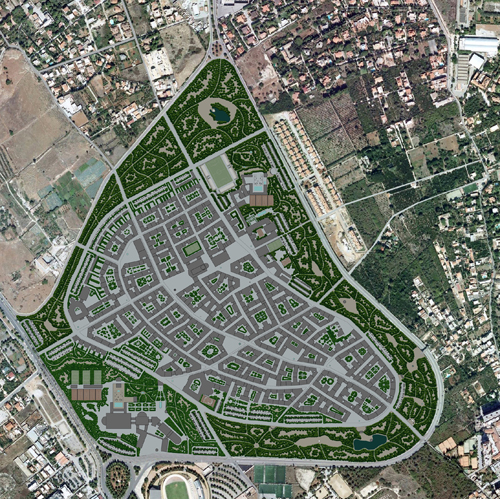

Inserimento Nuovo Borgo San Filippo Neri
